Product Introduction
PRODUCTS

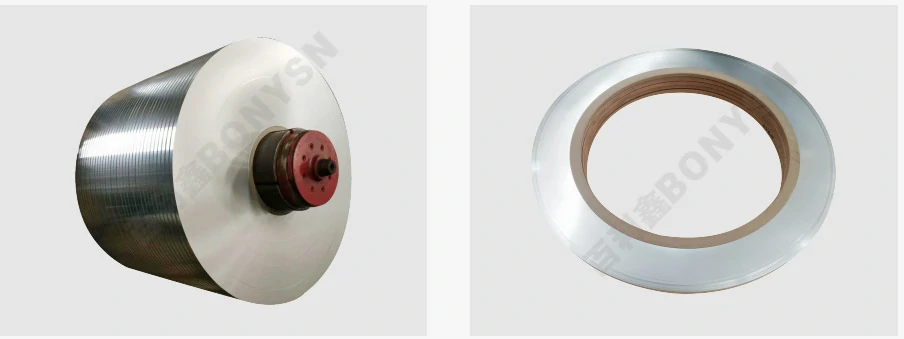

Stainless steel strip and pre-plated nickel

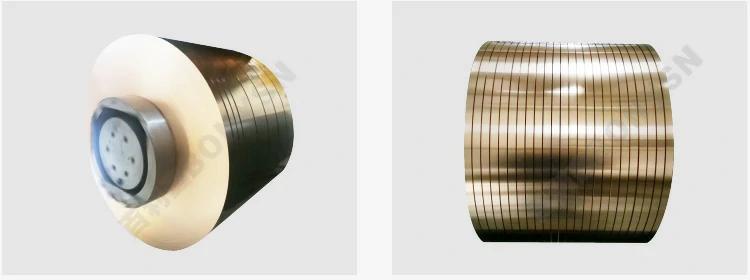

Special copper alloy
Continuous electroplating of metal strip materials

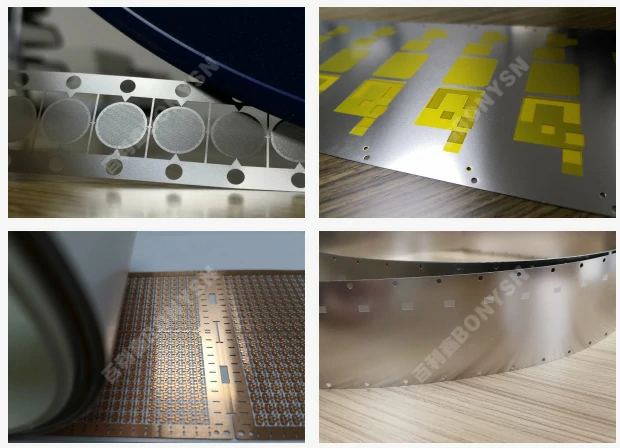

Precision etching / semi-etching, roll-to-roll continuous etching
Model number

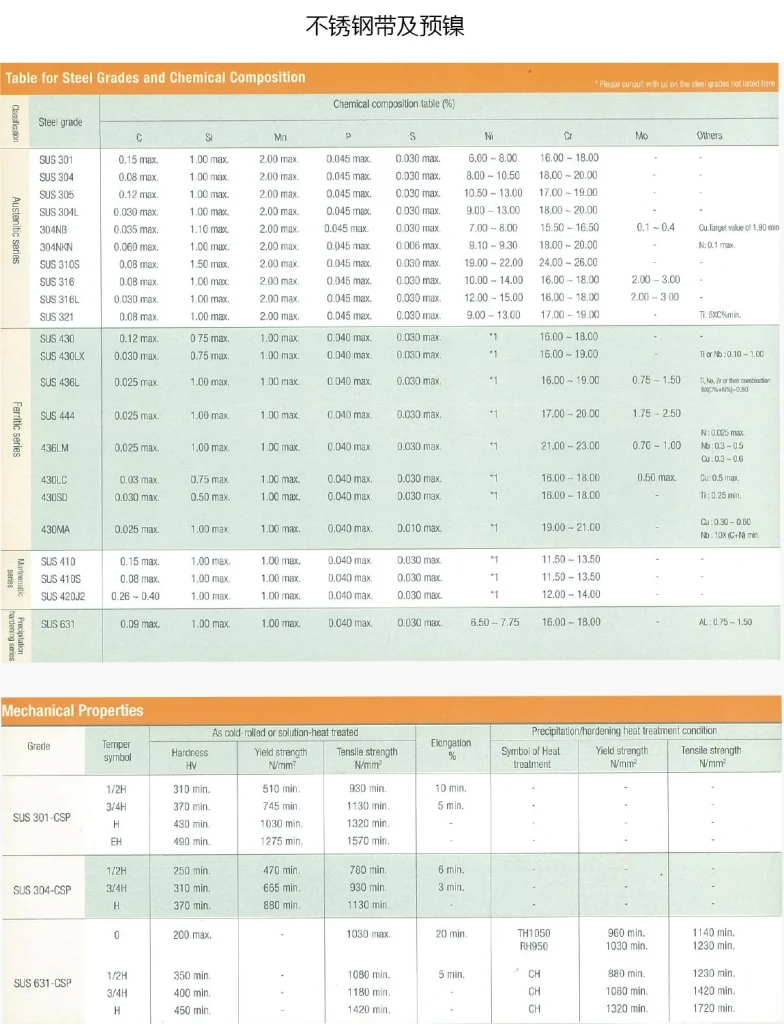

SUS301, SUS304, SUS305, SUS316, SUS430, N10, NM13, etc.
Status
M、1/2H、3/4H、EH、SH
Product application
Mobile phones, electronics, computer accessories, computer I/O connectors; hardware, stationery, kitchenware, medical equipment; stainless steel etching materials, chemical fillers; high-precision stainless steel springs, etc.

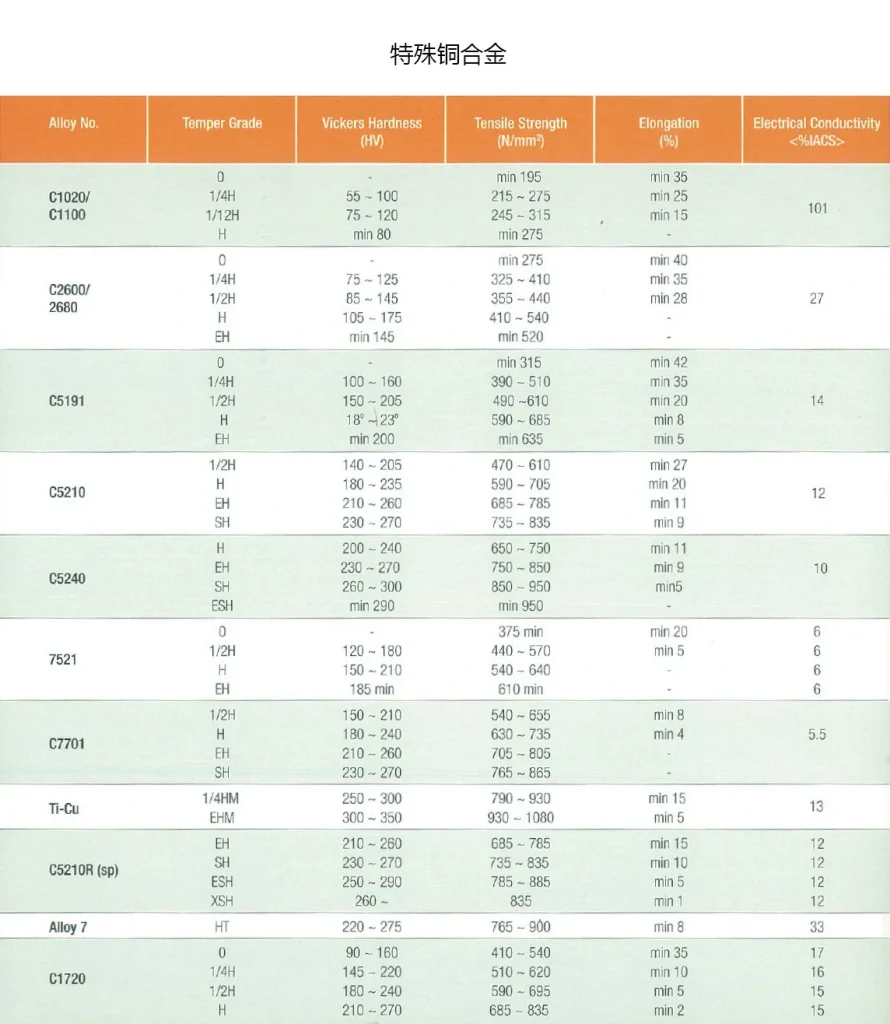

Model number
Rolled copper foil, copper plating C17200, C17300, C1750,
C17410; Titanium copper YCUT-M, YCUT-F, C1990,
NKT322, NKC388; MX215, etc.
Product application
Used for micro-motor brushes, switches, relays, mobile phone batteries,
springs, connectors, and spring plates for temperature controllers, all of
which require high strength, high elasticity, high hardness, and high wear resistance.

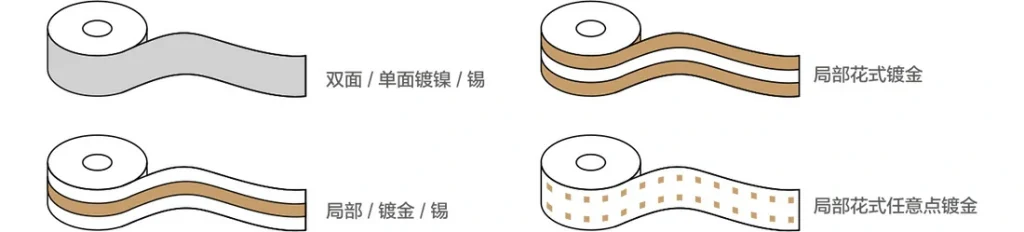

Electroplated gold - immersion gold plating, brush gold plating, wheel gold plating, dot gold plating
Electroplated silver - fully plated silver, select silver; bright silver, frosted silver
Electroplated tin - fully plated tin, select tin plating; bright pure tin, snow-white pure tin
Electroplated nickel - bright nickel, semi-bright nickel, multi-layer nickel, black nickel, pearl nickel
Electroplating of palladium-nickel alloy
Electroplated copper - acid copper, alkaline copper
No mold opening, quick sample making;
Zero burr precision products;
The maximum precision of the film etching can reach ±0.005mm.
Processing thickness: 0.01 - 2.0 mm;
Sheet material etching, pre-rinse/without-rinse positioning holes, sheet material delivery, facilitating subsequent stamping, bending, electroplating and injection molding processing. Significantly improves efficiency, reduces costs and lowers defect rates!
